Frame Bag
Basics and Features
BASIC / INCLUSIVE

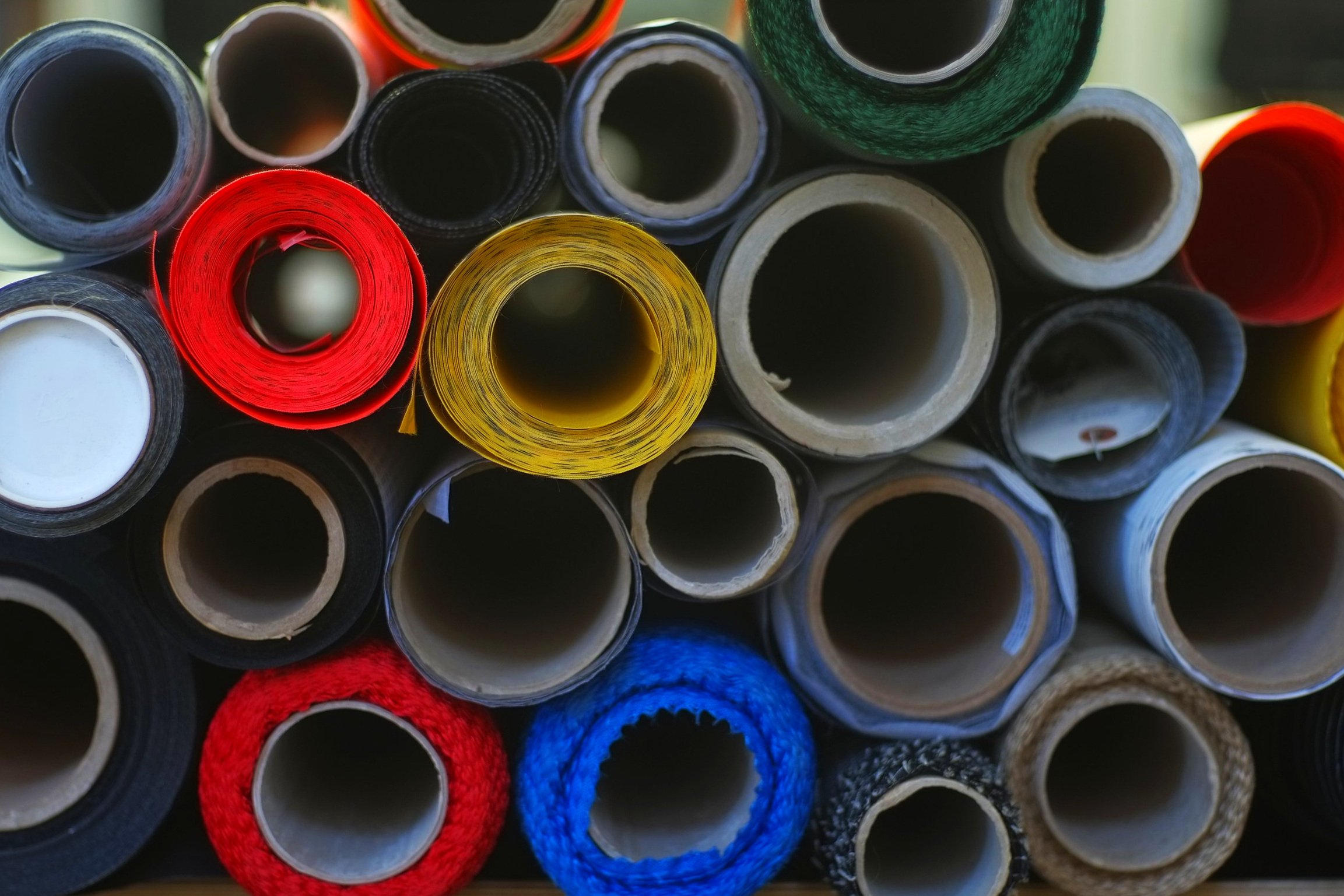

Choose your favorite Color / Fabric
We offer waterproof materials and fabrics which are especially suited for frame bags. We recommend the Ecopak 200 and Expedition X-Pac series for light and strong bags. These Materials are UV-resistant, waterproof and stiff enough to give your frame bag a perfect shape. We also offer UL (ultra light) - Materials (around 100g). Frame bags made of that materials has to be handled with care.
BASIC / INCLUSIVE

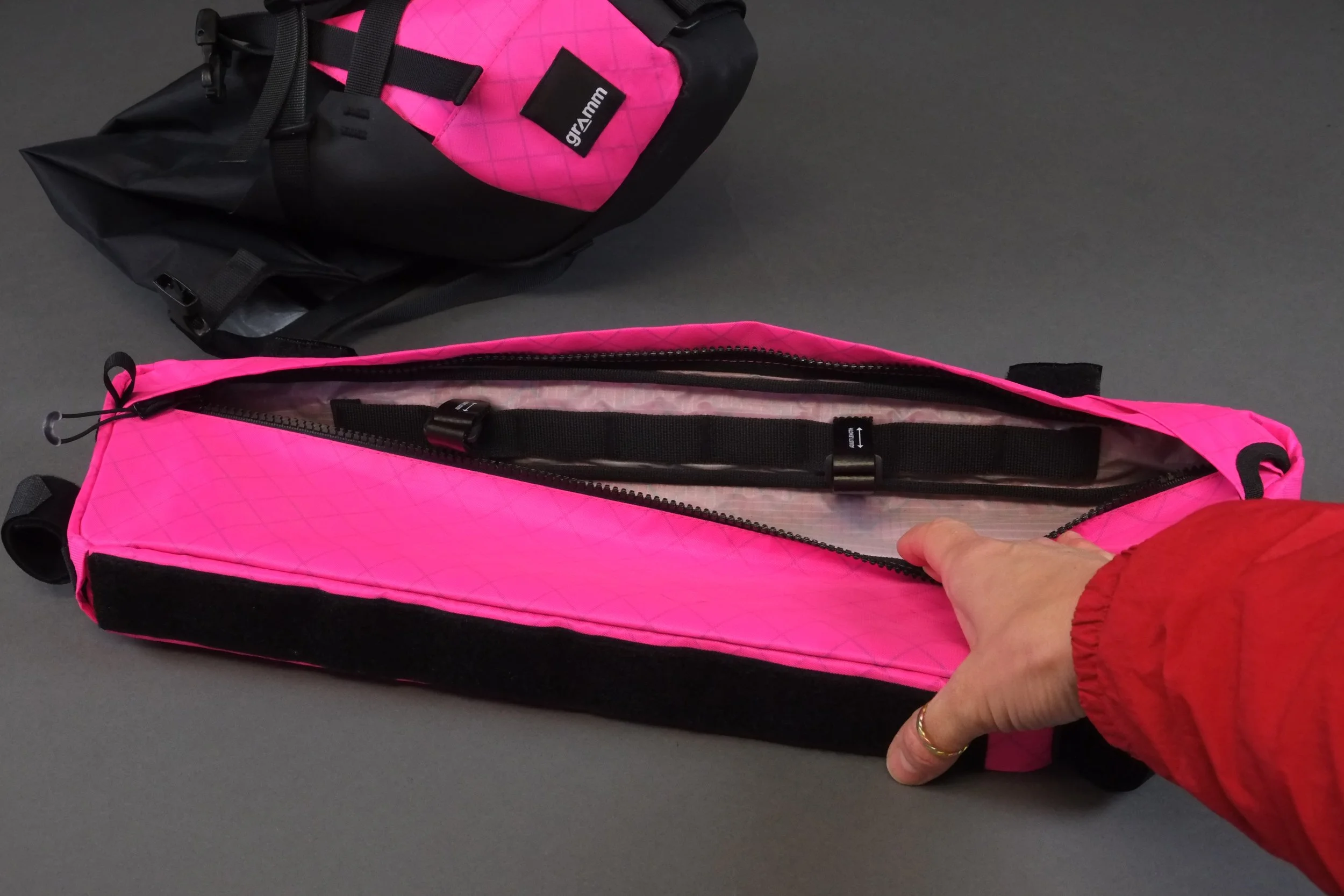

Main compartment
Choose your favorite main compartment side. Our recommendation is the side were you get on and off the bike. It also depends how you pack your bag, if you lie-down the bike (probably onto the Non-drive side) and if you are right-handed or left-handed. Choose the best side for your requirements!
We use YKK Profile Zippers. The zipper is protected with a flap. The Zipper puller is in front of the bag (head tube direction).
Good to know:
Our basic YKK profile Zippers (uncoated) are smooth-running and super strong. The tooths are most insusceptible against dust, sand and overpacking, like no other Zipper we testet over the last years. Because they aren’t coated we hide and protect them with a flap.
Feature / EXTRA:
Flat document compartment
The flat document compartment is outside, at the opposite side of your main compartment, made with YKK Aquaguard Zipper, without a flap. The Zipper puller is in front of the bag (head tube direction).
Good to know:
This Extra compartment is an recommendation for more comfort, for packing or re-packing small and important things very fast and safe. You can use the Zipper easy while cycling. Because YKK Aquaguard Zippers are are sensitive against overpacking, we use them for the less strained document compartment side.
Feature / EXTRA:
OUTSIDE Mesh fabric compartment
A flat mesh compartment for quick packing.
Good to know:
You see your stowed things directly but you can loose your stuff on unevenness! Use it for unimportant things and do not overpack this mesh compartment to prevent to wearing it out.
BASIC / INCLUSIVE:
Mounting option

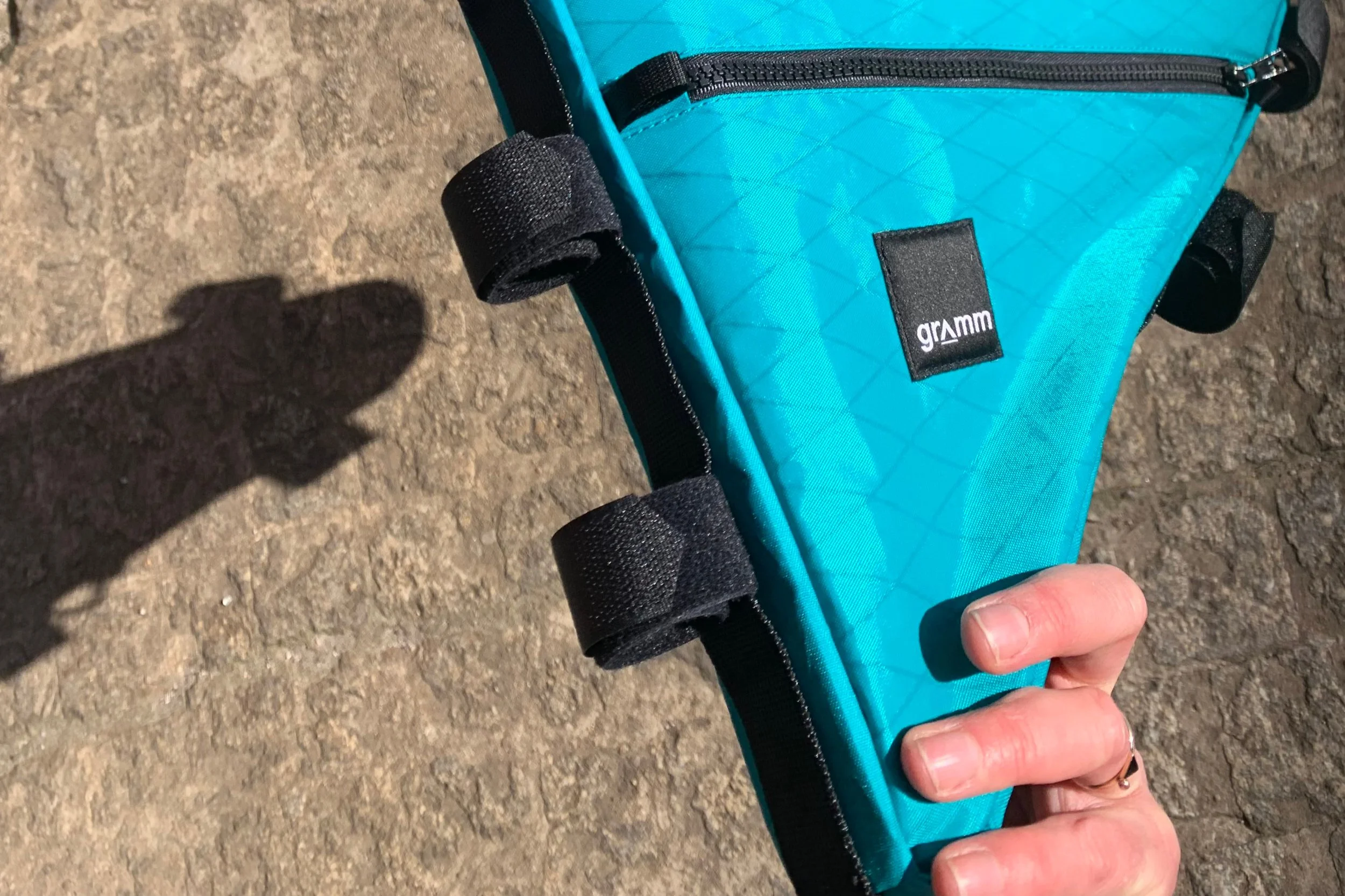

Daisy Chain + Velcro Straps
Our standard mounting system.
A sewn on flat webbing (Daisy Chain) with Velcro straps. Through the Daisy Chain you stay flexible with the position of your Velcro straps.
Good to know:
Our recommendation is the usage of frame protection tape (Helitape made from Poleurethan) to protect your frame and your paint at the Velcro strap positions. Applied to every frame material!
Feature / EXTRA:
Mounting option
Daisy Chain + Voile Straps
A very great working and clean looking mounting system.
Sewn on flat webbing (Daisy Chain) with VOILE straps. Through the Daisy Chain you stay flexible with the position of your VOILE straps. The VOILE straps “are sticking” to your frame. Through less vibration - less scrubbing of the paint.
Available VOILE strap length:
- 6” (15cm) long - 10mm wide, black
- 9” (23cm) long - 10mm wide, black
Good to know:
OOur recommendation is the usage of frame protection tape (Helitape made from Poleurethan) to protect your frame and your paint at the VOILE strap positions. Applied to every frame material!
Feature / EXTRA:
Mounting option
Round Rubber strap
Elastic round rubber strap (∅ 3mm) crossed and lished above the Top Tube.
We do not recommend this mounting option with carbon frames. Sand and dust and vibrations work like a saw.
Good to know:
Our recommendation is the usage of frame protection tape (Helitape made from Poleurethan) to protect your frame and your paint. Applied to every frame material!
Feature / EXTRA:
Mounting option
completely Bolt on
If your frame is equiped with bottle holder eyelets, you can mount your bag with screws. We just need the exact positions. We deliver M5 x 12 steel screws (rust-free), steel washers and rubber washers to mount the bag. The washers close the holes when screwing.
Good to know:
This mounting option is very stabile and clean.
But it needs some time to mount the bag. Also for thieves.
Feature / EXTRA:
Mounting option Bolted with LOXX fasteners
Frame Bag mounting at bottle holder eyelets or with Loxx fasteners allows fast frame bag attaching and removing. We just need the exact! positions of your eyelets! We deliver M5 x 10 LOXX screws (for the frame) + LOXX fasteners (already attached to the bag)
Good to know:
The way the LOXX fasteners work is mechanical. This mounting option looks very clean.
BASIC / INCLUSIVE
Mounting option
Mixed (Daisy Chain + Velcro straps + Bolt on)
Our standard mounting system. Mostly used for Full Frame Bags.
A sewn on flat webbing (Daisy Chain) with Velcro straps (40mm wide) + BOLT ON at the bottle holder eyelets.
Feature / EXTRA:
Hydration bladder Tube port
The hydration bladder tube port is located at the upper main compartment, in the direction of travel. It works like a strain relief for your water bladder tube. It allows the tube to leave the bag in an flat and obtuse angle, in an bow, which prevents that no water runs in.
Feature / EXTRA:
Cable passage
The cable passage is located at your head tube or down tube area, depending of your frame geometrie. It’s an piece of overlapping fabric, almost invisible, wide enough to lead through cables, plugs and cable connectors.
Feature / EXTRA:
Bicolor / Side Panels in contrast color
Choose a second color as a contrast color.
A very descreet way to bring some color into your bag.
Feature / EXTRA:
Bicolor / diagonal shaped contrast color
If you love eye-catching details, this feature is a great way to bring together different colors.
Good to know:
We have to make extra pattern constructions and cuttings. We tape and seam seal the divided pattern inside. We have extra production steps and need more time for that special feature. Therefore this feature has some extra cost.
